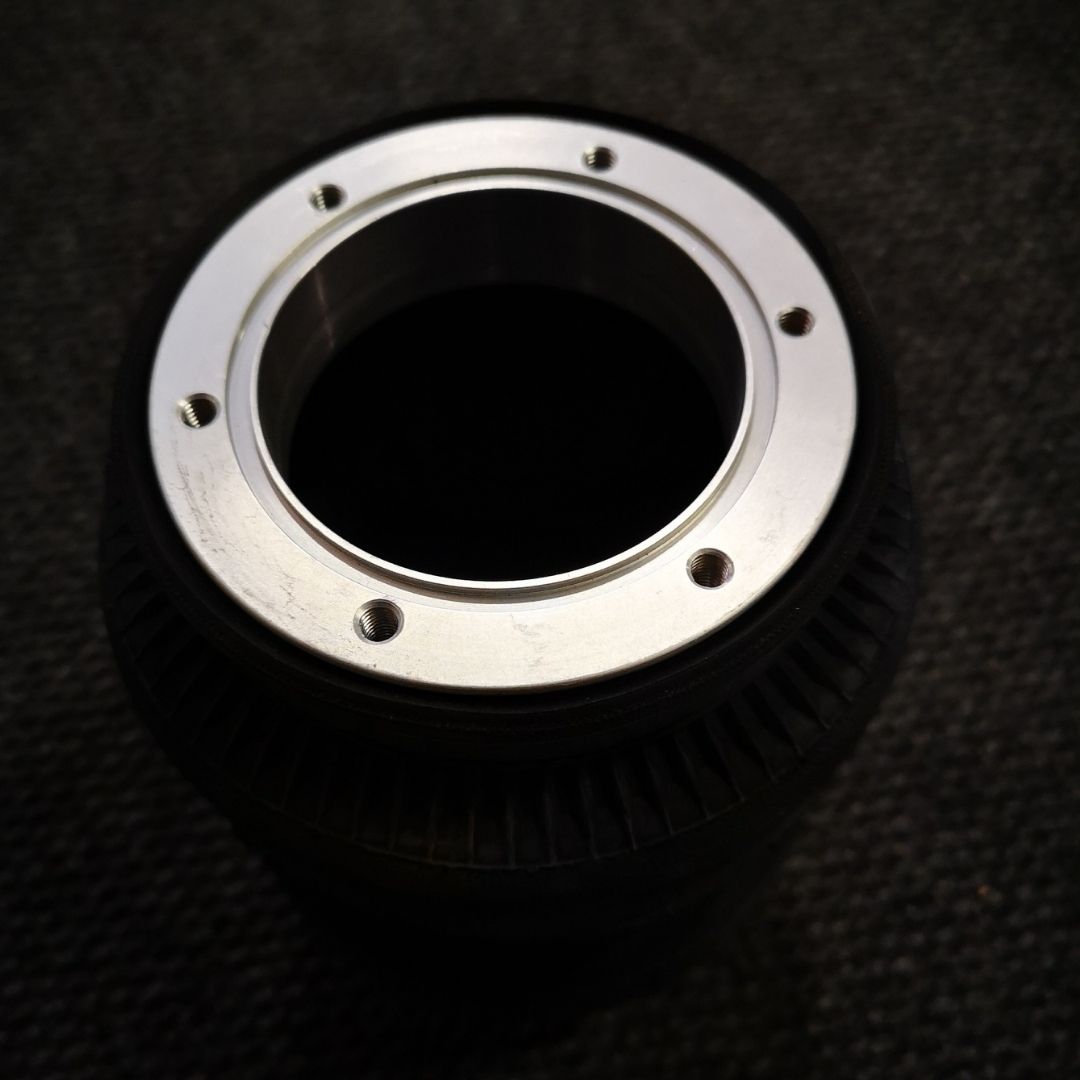

6 Inch Opening Ended Sleeve/Bellow

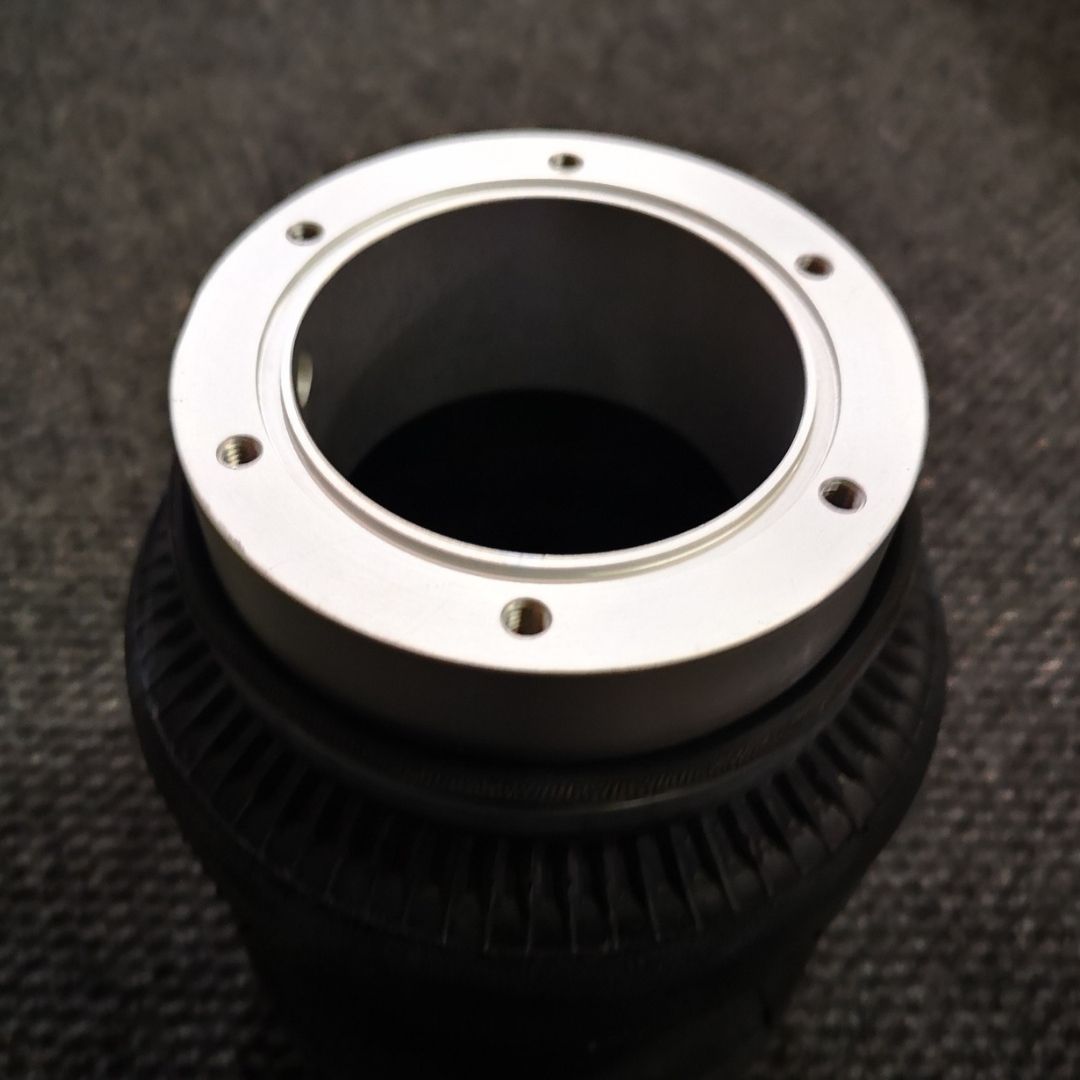

6 Inch Opening Ended Sleeve/Bellow - Image 2

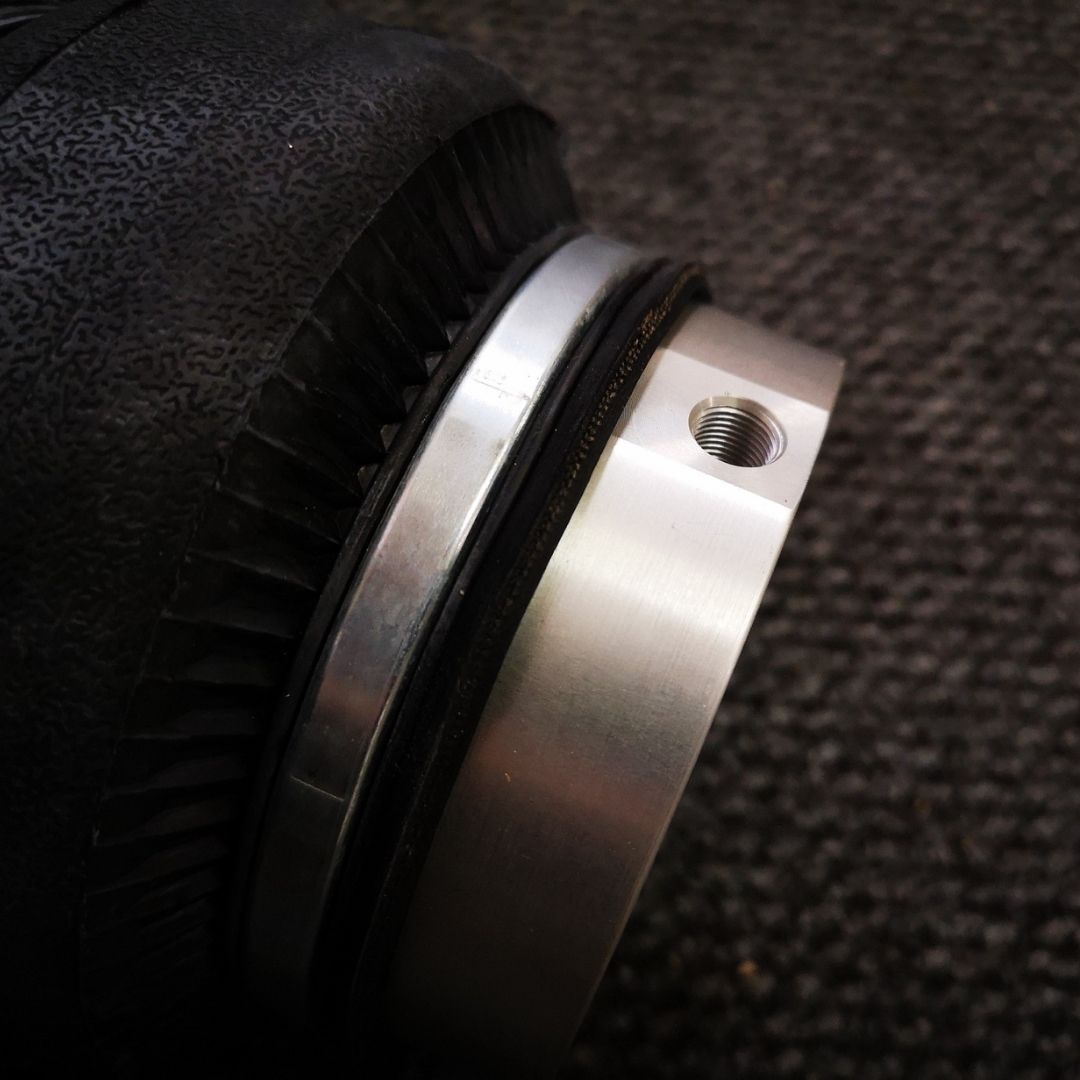

6 Inch Opening Ended Sleeve/Bellow - Image 3

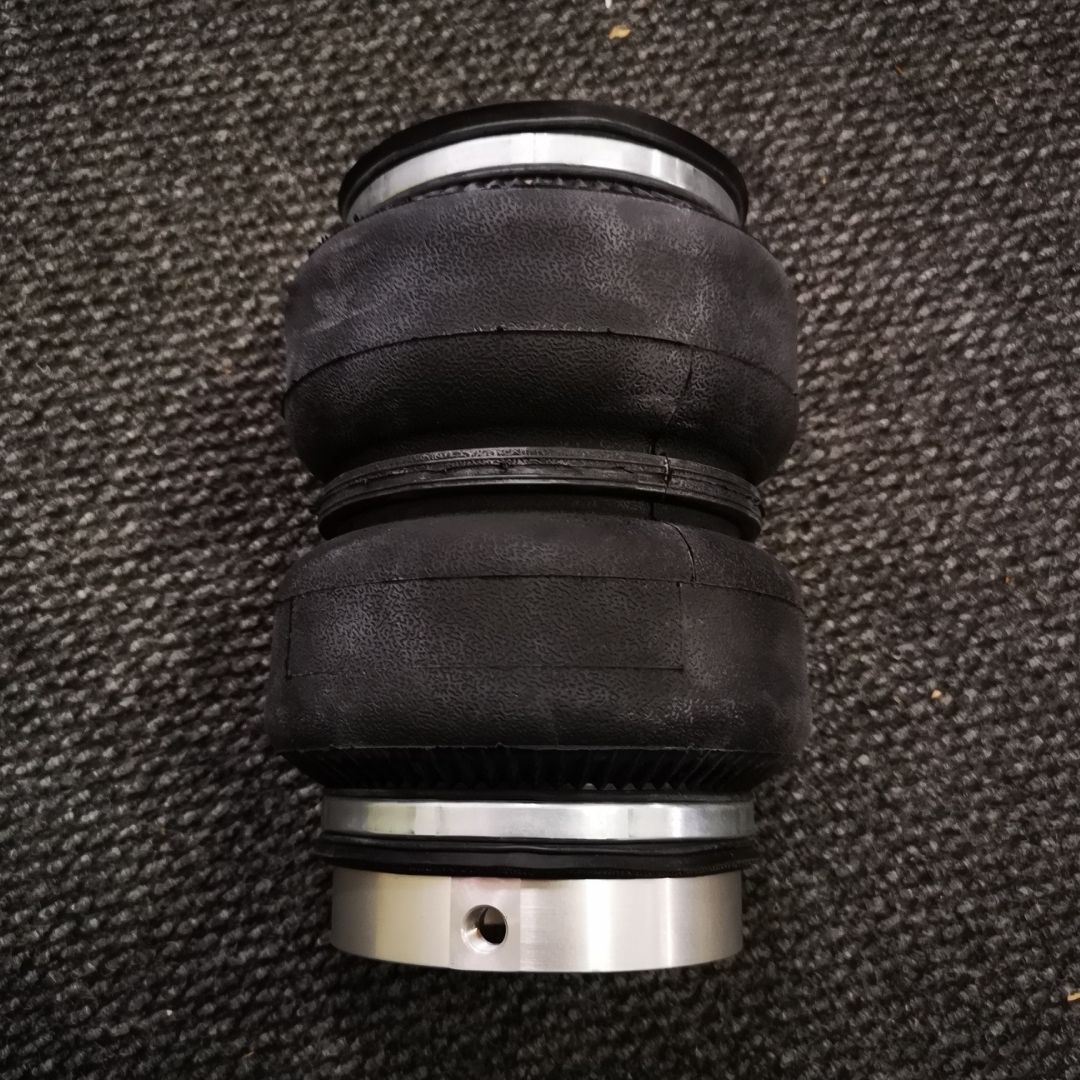

6 Inch Opening Ended Sleeve/Bellow - Image 4

6 Inch Opening Ended Sleeve/Bellow

SKU LOW2B6 Categories Miscellaneous, Pneumatic Accessories Tags airsprings, airsuspension part, single air bellow, single airspring

R3,200.00

Ship same or next business day

Hassle free returns

We’re here to help

6 Inch Opening Ended Sleeve/Bellow

Specifications:

160mm diameter
Open sleeve style air bellow
1/8 threaded air delivery port
73mm diameter top opening with a 3mm recess in aluminium for an 78mm(Internal Diameter) o-ring
73mm diameter bottom opening with a 3mm recess in aluminium for an 78mm(Internal Diameter) o-ring
90mm compressed height
200mm extended height
230mm extended height

Installation instructions are ship with every product. Get in touch with us if you have purchased a kit and require additional instructions HERE
